Driven by the wave of globalization, with the sustained growth in global infrastructure construction, PVC power cords, as the basic accessories for transmitting current, are experiencing rising demand due to their wide application in lighting, electrical equipment connection and other fields. This trend has prompted more and more enterprises to turn their attention to overseas markets, bringing broad opportunities for PVC power cord products to expand internationally.
Wanma Macromolecule’s Eco-Friendly PVC Cable Compound for Power Cords (WMC-6701, WMC-6702) complies with the latest RoHS and REACH environmental regulations, meeting the demand for environmentally friendly products in the international market.
The insulation material (WMC-6702) and sheath material (WMC-6701) are designed and developed specifically for low-voltage power cord applications, with various types of wire specifications including RVVP, RVV, RV, BV, BVR, etc. They can be used in industrial equipment, electronic appliances, power cords and other fields. The product not only meets the requirements of J-70 and H-70 standards in GB/T 8815, but the finished wires also meet the mechanical and electrical performance requirements of cables in multiple countries such as GB/T 5023, IEC 60227, UL62, EN 50363, JIS C3312, and SANS 1411-2.

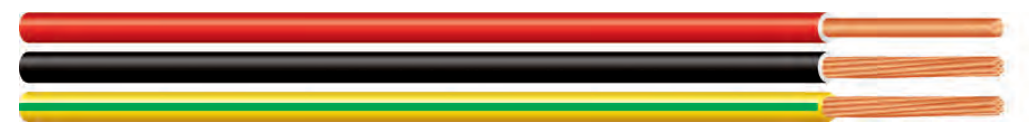

BV RV

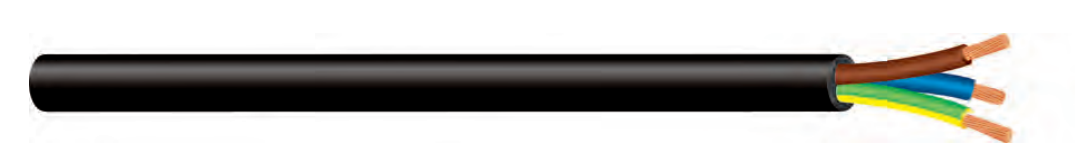

RVV
At present, the product has been successfully applied by multiple customers at home and abroad, and its excellent performance has been highly recognized by customers. The specific product TDS is as follows:

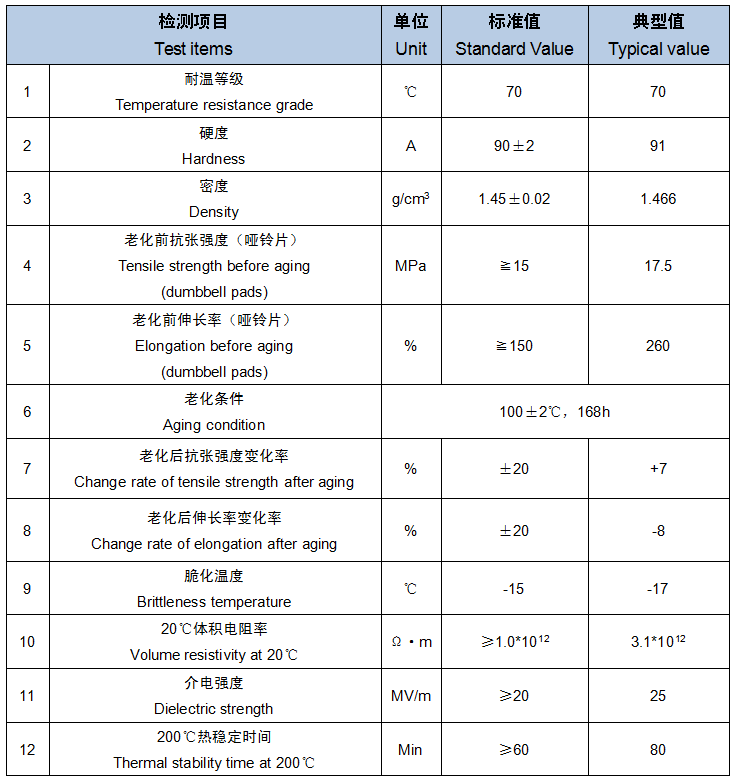

Table 1 Physical and Chemical Performance Test of PVC Sheath Material

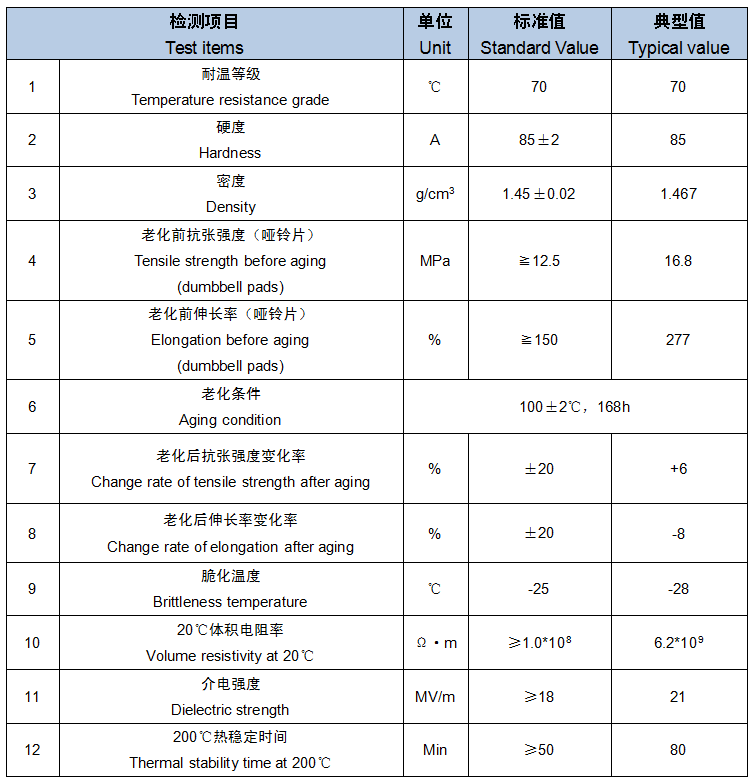

Table 2 Physical and Chemical Performance Test of PVC Insulation Material
As shown in the table above, the product far exceeds industry standards in multiple key indicators such as tensile strength, elongation, aging performance, low-temperature performance, volume resistivity, and thermal stability time, demonstrating extremely high reliability.
At the same time, based on the above standard physical properties, we can customize flame retardant performance to meet different customers’ requirements, including single vertical combustion and bundle class A/B/C vertical combustion tests specified in GB/T 18380, the low-temperature winding at -10℃ to -40℃ specified in IEC 60811, and the 720-hour UV resistance test in UL1581, with extremely high plasticity.
Wanma Macromolecule’s Eco-Friendly PVC Cable Compound for Power Cords not only has excellent physical properties and extrusion process, but also has the characteristics of green environmental protection, safety and reliability, providing a reliable choice for low-voltage power cord products. In the future, the company will continue to deeply cultivate the field of new materials for wires and cables, and is committed to providing strong support for technological innovation and green development in the wire and cable industry.
